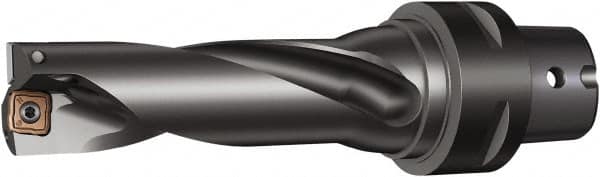

Sandvik Coromant - 115mm Max Drill Depth, 3xD, 37mm Diam, Indexable Insert Drill - 2 Inserts, C6 Modular Connection Shank
Item #: 54956891
Brand: Sandvik Coromant
Model #: 5765473
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 37.00 |
| Drill Diameter (Decimal Inch) | 1.4567 |
| Maximum Drill Depth (mm) | 115.00 |
| Maximum Drill Depth (Decimal Inch) | 4.5276 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.4567 |
| Maximum Drill Diameter (mm) | 39.50 |
| Overall Length/Projection (mm) | 202.00 |
| Overall Length/Projection (Decimal Inch) | 7.9528 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Flute Length (mm) | 111.00 |
| Flute Length (Decimal Inch) | 4.3701 |
| Body Length (Decimal Inch) | 6.4299 |
| Body Length (mm) | 163.32 |
| Shank Length (mm) | 38.68 |
| Shank Length (Decimal Inch) | 1.5229 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 1.25 |
