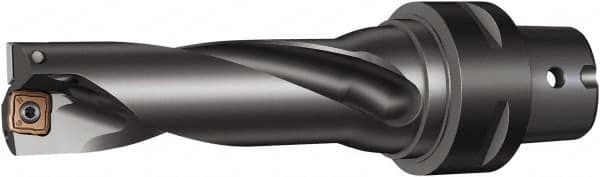

Sandvik Coromant - 62mm Max Drill Depth, 3.02564xD, 19.5mm Diam, Indexable Insert Drill - 2 Inserts, C5 Modular Connection Shank
Item #: 54956560
Brand: Sandvik Coromant
Model #: 5765301
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 19.50 |
| Drill Diameter (Decimal Inch) | 0.7677 |
| Maximum Drill Depth (mm) | 62.00 |
| Maximum Drill Depth (Decimal Inch) | 2.4409 |
| Shank Type | Modular Connection |
| Modular Connection Size | C5 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3.02564xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7677 |
| Maximum Drill Diameter (mm) | 20.10 |
| Overall Length/Projection (mm) | 129.00 |
| Overall Length/Projection (Decimal Inch) | 5.0787 |
| Insert Compatibility | 880-030305H-C-GM; 880-0303W05H-P-GM |
| Flute Length (mm) | 59.00 |
| Flute Length (Decimal Inch) | 2.3228 |
| Body Length (Decimal Inch) | 3.8823 |
| Body Length (mm) | 98.61 |
| Shank Length (mm) | 30.39 |
| Shank Length (Decimal Inch) | 1.1963 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.30 |
