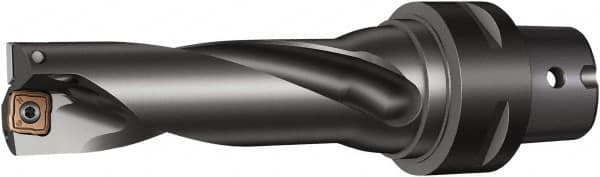

Sandvik Coromant - 103mm Max Drill Depth, 3xD, 33mm Diam, Indexable Insert Drill - 2 Inserts, C6 Modular Connection Shank
Item #: 54956511
Brand: Sandvik Coromant
Model #: 5765409
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 33.00 |
| Drill Diameter (Decimal Inch) | 1.2992 |
| Maximum Drill Depth (mm) | 103.00 |
| Maximum Drill Depth (Decimal Inch) | 4.0551 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.2992 |
| Maximum Drill Diameter (mm) | 34.50 |
| Overall Length/Projection (mm) | 188.00 |
| Overall Length/Projection (Decimal Inch) | 7.4016 |
| Insert Compatibility | 880-060406H-C-GM; 880-0604W06H-P-GM |
| Flute Length (mm) | 99.00 |
| Flute Length (Decimal Inch) | 3.8976 |
| Body Length (Decimal Inch) | 5.8815 |
| Body Length (mm) | 149.39 |
| Shank Length (mm) | 38.61 |
| Shank Length (Decimal Inch) | 1.5202 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.75 |
