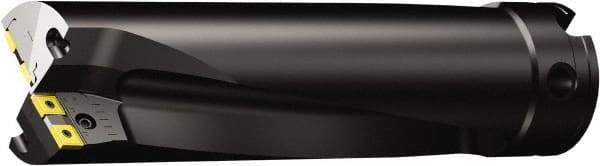

Sandvik Coromant - 260.15mm Max Drill Depth, 3xD, 79mm Diam, Indexable Insert Drill - 80 Modular Connection Shank
Item #: 54956214
Brand: Sandvik Coromant
Model #: 6770834
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 79.00 |
| Drill Diameter (Decimal Inch) | 3.1102 |
| Maximum Drill Depth (mm) | 260.15 |
| Maximum Drill Depth (Decimal Inch) | 10.2421 |
| Shank Type | Modular Connection |
| Modular Connection Size | 80 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 2.9134 |
| Maximum Drill Diameter (mm) | 74.00 |
| Overall Length/Projection (mm) | 325.00 |
| Overall Length/Projection (Decimal Inch) | 12.7953 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Flute Length (mm) | 237.00 |
| Flute Length (Decimal Inch) | 9.3307 |
| Body Length (Decimal Inch) | 12.0331 |
| Body Length (mm) | 305.64 |
| Shank Length (mm) | 19.36 |
| Shank Length (Decimal Inch) | 0.7622 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.00 |
