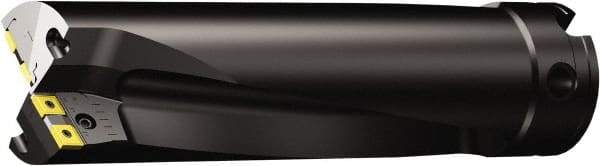

Sandvik Coromant - 249.63mm Max Drill Depth, 3.12676xD, 71mm Diam, Indexable Insert Drill - 80 Modular Connection Shank
Item #: 54956206
Brand: Sandvik Coromant
Model #: 6770865
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 71.00 |
| Drill Diameter (Decimal Inch) | 2.7953 |
| Maximum Drill Depth (mm) | 249.63 |
| Maximum Drill Depth (Decimal Inch) | 9.8280 |
| Shank Type | Modular Connection |
| Modular Connection Size | 80 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3.12676xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 2.6772 |
| Maximum Drill Diameter (mm) | 68.00 |
| Overall Length/Projection (mm) | 320.00 |
| Overall Length/Projection (Decimal Inch) | 12.5984 |
| Insert Compatibility | 880-060406H-C-GM; 880-0604W06H-P-GM |
| Flute Length (mm) | 222.00 |
| Flute Length (Decimal Inch) | 8.7402 |
| Body Length (Decimal Inch) | 11.8358 |
| Body Length (mm) | 300.63 |
| Shank Length (mm) | 19.37 |
| Shank Length (Decimal Inch) | 0.7626 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.00 |
