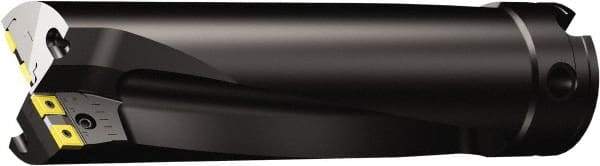

Sandvik Coromant - 212.77mm Max Drill Depth, 3.18462xD, 65mm Diam, Indexable Insert Drill - 80 Modular Connection Shank
Item #: 54956149
Brand: Sandvik Coromant
Model #: 6770826
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 65.00 |
| Drill Diameter (Decimal Inch) | 2.5591 |
| Maximum Drill Depth (mm) | 212.77 |
| Maximum Drill Depth (Decimal Inch) | 8.3768 |
| Shank Type | Modular Connection |
| Modular Connection Size | 80 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3.18462xD |
| Toolholder Material | Steel |
| Maximum Drill Diameter (Decimal Inch) | 2.4803 |
| Maximum Drill Diameter (mm) | 63.00 |
| Overall Length/Projection (mm) | 295.00 |
| Overall Length/Projection (Decimal Inch) | 11.6142 |
| Insert Compatibility | 880-060406H-C-GM; 880-0604W06H-P-GM |
| Flute Length (mm) | 207.00 |
| Flute Length (Decimal Inch) | 8.1496 |
| Body Length (Decimal Inch) | 10.8555 |
| Body Length (mm) | 275.73 |
| Shank Length (mm) | 19.27 |
| Shank Length (Decimal Inch) | 0.7587 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.00 |
