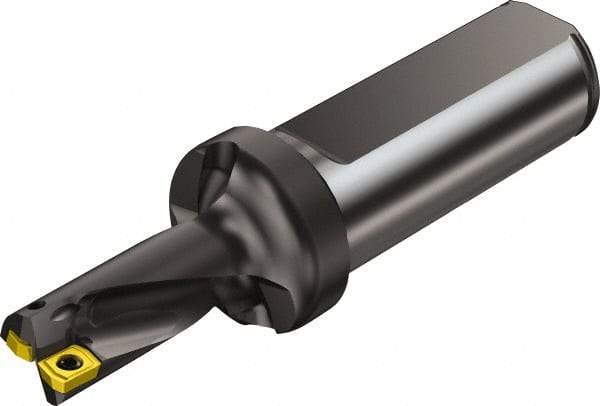

Sandvik Coromant - 122mm Max Drill Depth, 2xD, 58mm Diam, Indexable Insert Drill - 2 Inserts, 40mm Shank Diam, Flange Shank
Item #: 54956073
Brand: Sandvik Coromant
Model #: 5765541
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 58.00 |
| Drill Diameter (Decimal Inch) | 2.2835 |
| Maximum Drill Depth (mm) | 122.00 |
| Maximum Drill Depth (Decimal Inch) | 4.8032 |
| Shank Type | Flange |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.2835 |
| Maximum Drill Diameter (mm) | 60.80 |
| Overall Length/Projection (mm) | 232.00 |
| Overall Length/Projection (Decimal Inch) | 9.1339 |
| Insert Compatibility | 880-090608H-C-GM; 880-0906W08H-P-GM |
| Flute Length (mm) | 116.00 |
| Flute Length (Decimal Inch) | 4.5669 |
| Body Length (Decimal Inch) | 6.3417 |
| Body Length (mm) | 161.08 |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 1.40 |
