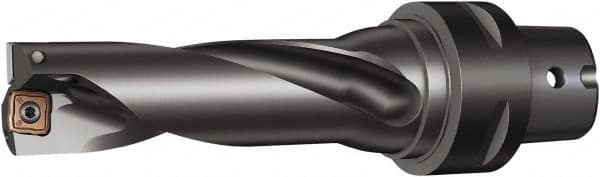

Sandvik Coromant - 172mm Max Drill Depth, 4xD, 42mm Diam, Indexable Insert Drill - 2 Inserts, C6 Modular Connection Shank
Item #: 54955927
Brand: Sandvik Coromant
Model #: 6340077
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 42.00 |
| Drill Diameter (Decimal Inch) | 1.6535 |
| Maximum Drill Depth (mm) | 172.00 |
| Maximum Drill Depth (Decimal Inch) | 6.7717 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.6535 |
| Maximum Drill Diameter (mm) | 42.00 |
| Overall Length/Projection (mm) | 280.00 |
| Overall Length/Projection (Decimal Inch) | 11.0236 |
| Insert Compatibility | 880-070406H-C-GM; 880-0704W06H-P-GM |
| Flute Length (mm) | 168.00 |
| Flute Length (Decimal Inch) | 6.6142 |
| Body Length (Decimal Inch) | 9.5008 |
| Body Length (mm) | 241.32 |
| Shank Length (mm) | 38.68 |
| Shank Length (Decimal Inch) | 1.5230 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.63 |
