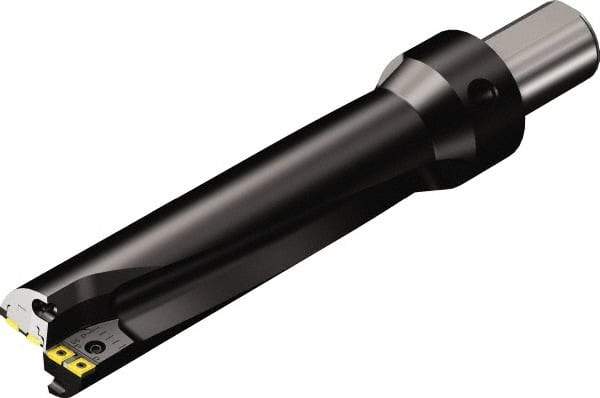

Sandvik Coromant - 212.77mm Max Drill Depth, 3.08955xD, 67mm Diam, Indexable Insert Drill - 2 Inserts, 50mm Shank Diam, Flange Shank
Item #: 54955489
Brand: Sandvik Coromant
Model #: 6660374
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 67.00 |
| Drill Diameter (Decimal Inch) | 2.6378 |
| Maximum Drill Depth (mm) | 212.77 |
| Maximum Drill Depth (Decimal Inch) | 8.3768 |
| Shank Type | Flange |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3.08955xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.4803 |
| Maximum Drill Diameter (mm) | 63.00 |
| Overall Length/Projection (mm) | 357.00 |
| Overall Length/Projection (Decimal Inch) | 14.0551 |
| Insert Compatibility | 880-060406H-C-GM; 880-0604W06H-P-GM |
| Flute Length (mm) | 207.00 |
| Flute Length (Decimal Inch) | 8.1496 |
| Body Length (Decimal Inch) | 10.8543 |
| Body Length (mm) | 275.70 |
| Shank Length (mm) | 80.00 |
| Shank Length (Decimal Inch) | 3.1496 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.00 |
