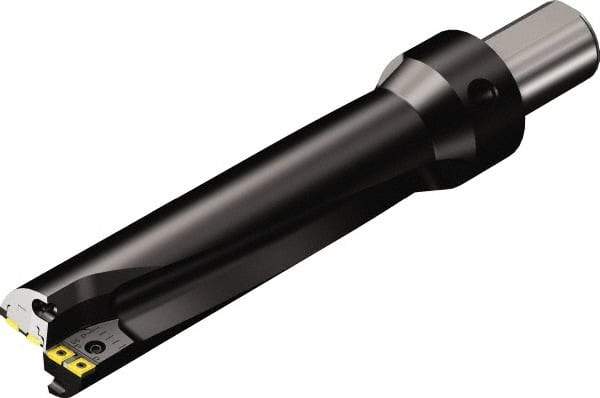

Sandvik Coromant - 11.0933" Max Drill Depth, 4.18182xD, 66mm Diam, Indexable Insert Drill - 2 Inserts, 2" Shank Diam, Flange Shank
Item #: 54955463
Brand: Sandvik Coromant
Model #: 6660366
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 66.00 |
| Drill Diameter (Decimal Inch) | 2.5984 |
| Maximum Drill Depth (Decimal Inch) | 11.0933 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Shank Diameter (Inch) | 2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4.18182xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 2.4800 |
| Overall Length/Projection (Decimal Inch) | 16.7717 |
| Insert Compatibility | 880-060406H-C-GM; 880-0604W06H-P-GM |
| Flute Length (Decimal Inch) | 10.8661 |
| Body Length (Decimal Inch) | 13.5709 |
| Shank Length (Decimal Inch) | 3.2008 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.00 |
