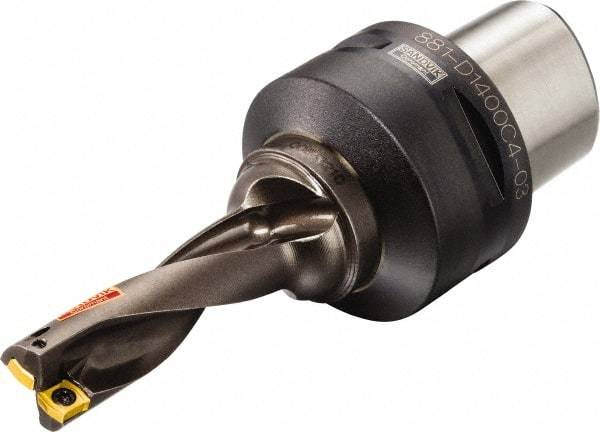

Sandvik Coromant - 45mm Max Drill Depth, 3xD, 14mm Diam, Indexable Insert Drill - 2 Inserts, C4 Modular Connection Shank
Item #: 54955430
Brand: Sandvik Coromant
Model #: 5962205
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 14.00 |
| Drill Diameter (Decimal Inch) | 0.5512 |
| Maximum Drill Depth (mm) | 45.00 |
| Maximum Drill Depth (Decimal Inch) | 1.7717 |
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.5512 |
| Maximum Drill Diameter (mm) | 16.00 |
| Overall Length/Projection (mm) | 107.00 |
| Overall Length/Projection (Decimal Inch) | 4.2126 |
| Insert Compatibility | 881-02 02 04M-C-GM1; 881-02 02 04M-P-GM1 |
| Flute Length (mm) | 42.00 |
| Flute Length (Decimal Inch) | 1.6535 |
| Body Length (Decimal Inch) | 3.2571 |
| Body Length (mm) | 82.73 |
| Shank Length (mm) | 24.27 |
| Shank Length (Decimal Inch) | 0.9556 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 1.00 |
