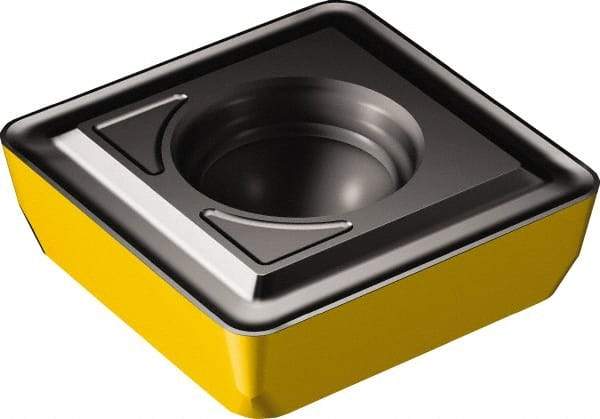

Sandvik Coromant - 880080508 GM 4334 Grade Carbide Indexable Insert Drill - TiCN/Al2O3/TiN Coated, Square, 0.6083" Inscr Circle, 0.1772" Thick, 0.0315" Cnr Rad
Item #: 54955026
Brand: Sandvik Coromant
Model #: 6633726
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 080508 |
| Material | Carbide |
| Manufacturer's Grade | 4334 |
| Inscribed Circle (mm) | 15.45 |
| Inscribed Circle (Decimal Inch) | 0.6083 |
| Thickness (mm) | 4.50 |
| Thickness (Decimal Inch) | 0.1772 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Square |
| Hole Diameter (mm) | 4.70 |
| Hole Diameter (Decimal Inch) | 0.1850 |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | GM |
