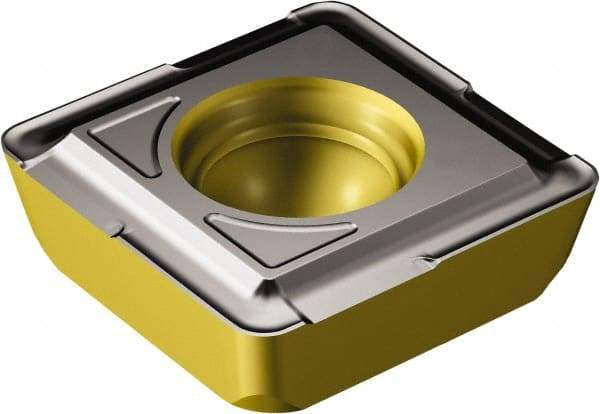

Sandvik Coromant - 880040307 GT 4334 Grade Carbide Indexable Insert Drill - TiCN/Al2O3/TiN Coated, Square, 0.2913" Inscr Circle, 0.1102" Thick, 0.0276" Cnr Rad
Item #: 54954870
Brand: Sandvik Coromant
Model #: 6633711
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 880 |
| Insert Size | 040307 |
| Material | Carbide |
| Manufacturer's Grade | 4334 |
| Inscribed Circle (mm) | 7.40 |
| Inscribed Circle (Decimal Inch) | 0.2913 |
| Thickness (mm) | 2.80 |
| Thickness (Decimal Inch) | 0.1102 |
| Corner Radius (mm) | 0.70 |
| Corner Radius (Decimal Inch) | 0.0276 |
| Shape | Square |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | GT |
