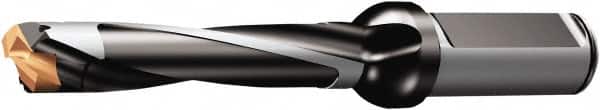

Sandvik Coromant - 10.5 to 10.99mm Diam, 5.19725xD, 56.65mm Max Depth, 16mm Shank Diam, 119mm OAL, Replaceable Tip Drill - 870-1090-7-PM Insert, 7 Seat Size, 870..L-5 Toolholder, Series CoroDrill 870
Item #: 54953419
Brand: Sandvik Coromant
Model #: 6035606
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CoroDrill 870 |
| Minimum Drill Diameter (mm) | 10.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4134 |
| Maximum Drill Diameter (mm) | 10.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.4327 |
| Drill Depth by Diameter Ratio | 5.19725xD |
| Maximum Drill Depth (Decimal Inch) | 2.2303 |
| Maximum Drill Depth (mm) | 56.65 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Style | 870-1090-7-PM |
| Insert Seat Size | 7 |
| Toolholder Style | 870..L-5 |
| Through Coolant | Through Coolant |
| Shank Type | Flange |
| Tip Length (mm) | 1.69 |
| Tip Length (Decimal Inch) | 0.0665 |
| Body Length (mm) | 58.00 |
| Body Length (Decimal Inch) | 2.2835 |
| Overall Length (mm) | 119.00 |
| Overall Length (Decimal Inch) | 4.6850 |
| Toolholder Material | Steel |
| Shank Length (mm) | 49.69 |
| Shank Length (Decimal Inch) | 1.9563 |
