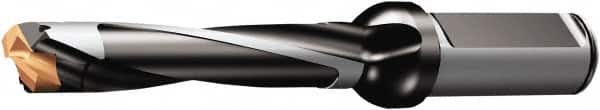

Sandvik Coromant - 11.5 to 11.99mm Diam, 5.19328xD, 61.8mm Max Depth, 16mm Shank Diam, 125mm OAL, Replaceable Tip Drill - 870-1190-8-PM Insert, 9 Seat Size, 870..L-5 Toolholder, Series CoroDrill 870
Item #: 54953401
Brand: Sandvik Coromant
Model #: 6035625
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CoroDrill 870 |
| Minimum Drill Diameter (mm) | 11.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4528 |
| Maximum Drill Diameter (mm) | 11.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.4720 |
| Drill Depth by Diameter Ratio | 5.19328xD |
| Maximum Drill Depth (Decimal Inch) | 2.4331 |
| Maximum Drill Depth (mm) | 61.80 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Style | 870-1190-8-PM |
| Insert Seat Size | 9 |
| Toolholder Style | 870..L-5 |
| Through Coolant | Through Coolant |
| Shank Type | Flange |
| Tip Length (mm) | 1.83 |
| Tip Length (Decimal Inch) | 0.0720 |
| Body Length (mm) | 64.00 |
| Body Length (Decimal Inch) | 2.5197 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Toolholder Material | Steel |
| Shank Length (mm) | 49.83 |
| Shank Length (Decimal Inch) | 1.9618 |
