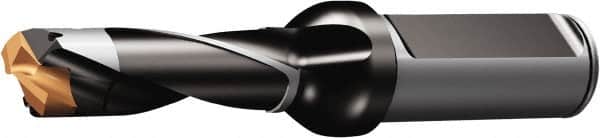

Sandvik Coromant - 10 to 10.49mm Diam, 3.18173xD, 33.09mm Max Depth, 16mm Shank Diam, 96mm OAL, Replaceable Tip Drill - 870-1040-6-PM Insert, 6 Seat Size, 870..L-3 Toolholder, Series CoroDrill 870
Item #: 54953260
Brand: Sandvik Coromant
Model #: 6035596
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CoroDrill 870 |
| Minimum Drill Diameter (mm) | 10.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.3937 |
| Maximum Drill Diameter (mm) | 10.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4130 |
| Drill Depth by Diameter Ratio | 3.18173xD |
| Maximum Drill Depth (Decimal Inch) | 1.3028 |
| Maximum Drill Depth (mm) | 33.09 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Style | 870-1040-6-PM |
| Insert Seat Size | 6 |
| Toolholder Style | 870..L-3 |
| Through Coolant | Through Coolant |
| Shank Type | Flange |
| Tip Length (mm) | 1.60 |
| Tip Length (Decimal Inch) | 0.0630 |
| Body Length (mm) | 35.00 |
| Body Length (Decimal Inch) | 1.3780 |
| Overall Length (mm) | 96.00 |
| Overall Length (Decimal Inch) | 3.7795 |
| Toolholder Material | Steel |
| Shank Length (mm) | 49.60 |
| Shank Length (Decimal Inch) | 1.9528 |
