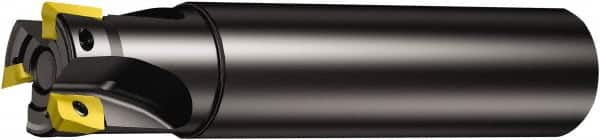

Sandvik Coromant - 12mm Cut Diam, 10mm Max Depth of Cut, 16mm Shank Diam, 3.7402" OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series CoroMill 390
Item #: 54952544
Brand: Sandvik Coromant
Model #: 5745376
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Cutting Diameter (Decimal Inch) | 0.4724 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length/Projection (Decimal Inch) | 3.7402 |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R390-012A16-11L |
| Number of Flutes | 1 |
| Head Length (mm) | 20.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Weldon Flat | No |
| Insert Compatibility | R390-11 T3 04M-PM; R390-11 T3 08E-PL; R390-11 T3 08M-PM; R390-11 T3 16E-PM; R390-11 T3 16M-KM; R390-11 T3 16M-PM |
| Shank Length (Decimal Inch) | 2.9528 |
| Maximum RPM | 68600 |
| Toolholder Material | Steel |
