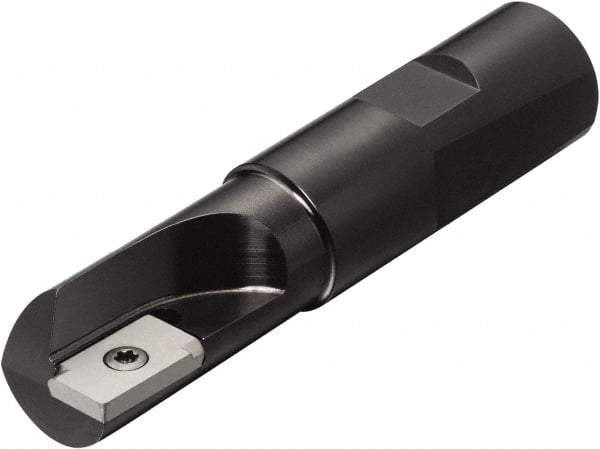

Sandvik Coromant - 1" Cut Diam, 7.5mm Max Depth of Cut, 3/4" Shank Diam, 3.6772" OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Weldon Shank, 90° Lead Angle, Series U-Max
Item #: 54951314
Brand: Sandvik Coromant
Model #: 5742811
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.6772 |
| Lead Angle | 90 |
| Series | U-Max |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 7.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2953 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R216.2-325 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.5710 |
| Weldon Flat | Yes |
| Insert Compatibility | R216.2-07 T3 235; R216.2-07 T3 HM; R216.2-07 T3 S6; R216.2-07 T3 SM30; R216.2-15 T3 08-1 235; R216.2-15 T3 08-1 HM; R216.2-15 T3 08-1 S6; R216.2-15 T3 08-1 SM30; R216.2-15 T3 12-2 235; R216.2-15 T3 12-2 SM30 |
| Shank Length (Decimal Inch) | 2.1070 |
| Maximum RPM | 12095 |
| Toolholder Material | Steel |
