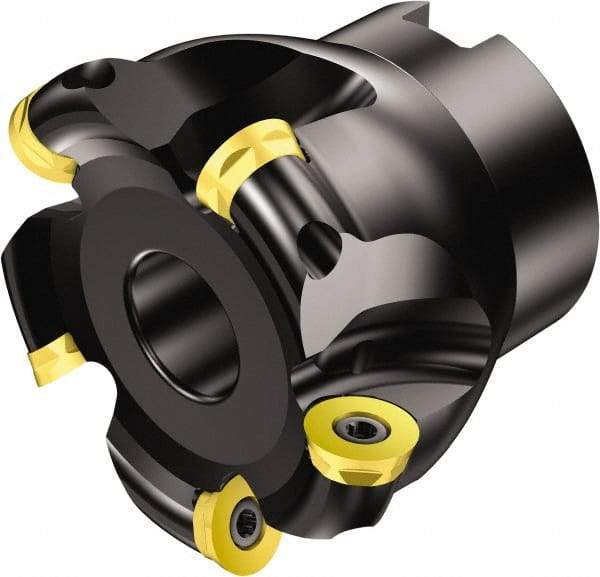

Sandvik Coromant - 7 Inserts, 4" Cutter Diam, 0.4921" Max Depth of Cut, Indexable High-Feed Face Mill - 1-1/2" Arbor Hole Diam, 0.6331" Keyway Width, 2.4803" High, RA300..Rxx Toolholder, R300-2570.. Inserts, Series CoroMill 300
Item #: 54949755
Brand: Sandvik Coromant
Model #: 5740102
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Cutting Diameter (Inch) | 4 |
| Maximum Depth of Cut (Decimal Inch) | 0.4921 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (Decimal Inch) | 2.4803 |
| Series | CoroMill 300 |
| Cutter Style | RA300..Rxx |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | R300-2570.. |
| Cutting Direction | Right Hand |
| Maximum RPM | 10994 |
| Through Coolant | Yes |
| Complete Insert Compatibility | R300-2570.. |
| Keyway Width (Decimal Inch) | 0.6331 |
| Manufacturers Catalog Number | 5740102 |
