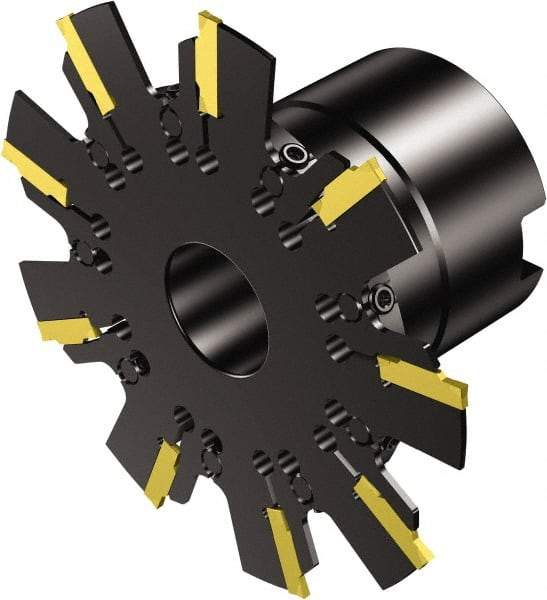

Sandvik Coromant - Shell Mount Connection, 0.1969" Cutting Width, 0.5906" Depth of Cut, 100mm Cutter Diam, 0.8661" Hole Diam, 6 Tooth Indexable Slotting Cutter - 329-Q Toolholder, N123J1-... Insert, Right Hand Cutting Direction
Item #: 54949615
Brand: Sandvik Coromant
Model #: 5758884
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Cutter Diameter (mm) | 100.00 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (mm) | 22.00 |
| Hole Diameter (Decimal Inch) | 0.8661 |
| Number of Teeth | 6 |
| Toolholder Style | 329-Q |
| Series | CoroMill 329 |
| Insert Style | N123J1-... |
| Staggered Tooth | No |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Maximum RPM | 3350 |
| Hub Diameter (Decimal Inch) | 1.6929 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Keyway Width (mm) | 10.40 |
| Maximum Body Diameter (Decimal Inch) | 1.6929 |
| Weldon Flat | No |
| Through Coolant | No |
| Manufacturers Catalog Number | 5758884 |
| Complete Insert Compatibility1 | N123J1-0500-0002-CM; N123J1-0500-0004-CR; N123J1-0600-0002-GE; N123J1-060004S01025; N123J1-0600-RE; N123J1-0600-RM; N123J1-0600-RO; N123J1-0600-RS; N123J1-0600S01025; N123J1-0635-RE; N123J2-0475-0003-GM; N123J2-0500-0002-CM; N123J2-0500-0004-CR; N123J2-05 |
| Overall Height (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
