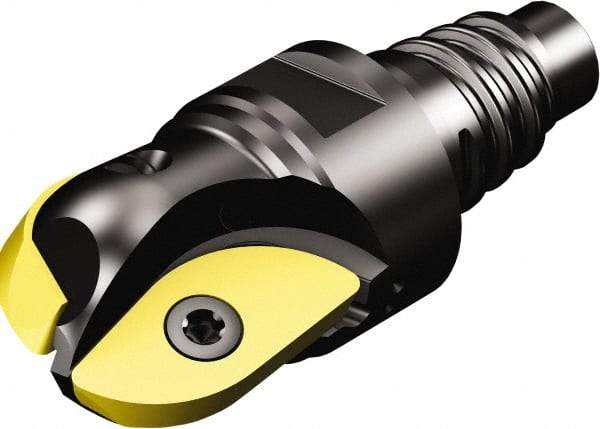

Sandvik Coromant - 3/8" Cut Diam, 0.31" Max Depth of Cut, 9.25mm Shank Diam, 1.2284" OAL, Indexable Ball Nose End Mill - 20mm Head Length, E10 Modular Connection, RA216.. EH Toolholder, RA216-10 02 Insert
Item #: 54949334
Brand: Sandvik Coromant
Model #: 6550052
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Maximum Depth of Cut (Decimal Inch) | 0.3100 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | E10 |
| Shank Diameter (mm) | 9.25 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | RA216-10 02 |
| Toolholder Style | RA216.. EH |
| Series | CoroMill 216 |
| Overall Length (Decimal Inch) | 1.2284 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 20.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Number of Side Inserts Used on Toolholder | 2 |
| Neck Diameter (Decimal Inch) | 0.3642 |
| Maximum RPM | 12700 |
| Projection (Decimal Inch) | 0.7874 |
