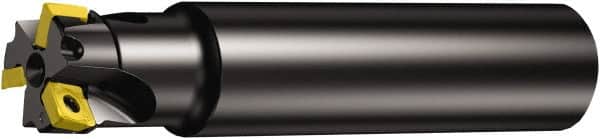

Sandvik Coromant - 25mm Cut Diam, 5.5mm Max Depth of Cut, 20mm Shank Diam, 110mm OAL, Indexable Square Shoulder End Mill - 490R-08T308M-PL Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series CoroMill 490
Item #: 54947916
Brand: Sandvik Coromant
Model #: 5761972
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9844 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Overall Length/Projection (mm) | 110.00 |
| Overall Length/Projection (Decimal Inch) | 4.3307 |
| Lead Angle | 90 |
| Series | CoroMill 490 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | 490-025A20-08L |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.2598 |
| Weldon Flat | No |
| Insert Compatibility | 490R-08T308M-PL |
| Shank Length (Decimal Inch) | 3.0709 |
| Maximum RPM | 40400 |
| Toolholder Material | Steel |
