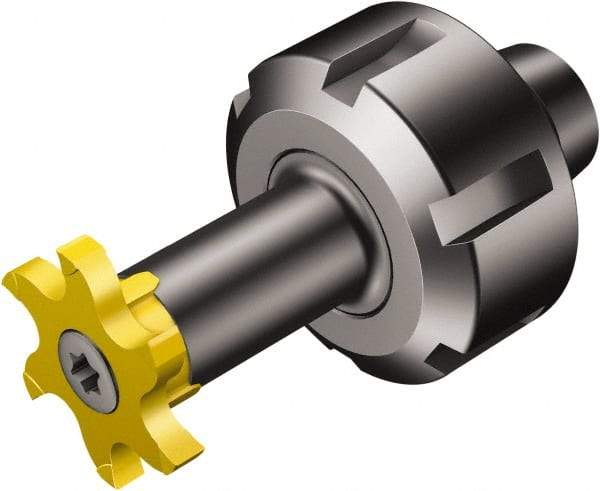

Sandvik Coromant - CoroMill 327 14.3mm Collet Shank Milling Tip Insert Holder & Shank - 28.8mm Projection, 0.5512" Neck Diam, 14mm Nose Diam, 64.2mm OAL, Steel 392.ER327 Tool Holder
Item #: 54946884
Brand: Sandvik Coromant
Model #: 6073952
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | CoroMill 327 |
| Shank Type | Collet |
| Shank Diameter (mm) | 14.30 |
| Shank Diameter (Decimal Inch) | 0.5630 |
| Projection (mm) | 28.80 |
| Projection (Decimal Inch) | 1.1339 |
| Neck Diameter (Decimal Inch) | 0.5512 |
| Nose Diameter (mm) | 14.00 |
| Nose Diameter (Decimal Inch) | 0.5512 |
| Toolholder Material | Steel |
| Overall Length (mm) | 64.20 |
| Overall Length (Decimal Inch) | 2.5276 |
| Head Length (Decimal Inch) | 1.1339 |
| Collet Series | ER20 |
| Maximum Diameter (mm) | 14.00 |
| Maximum Diameter (Decimal Inch) | 0.5512 |
| Shank Material | Steel |
| Toolholder Style | 392.ER327 |
