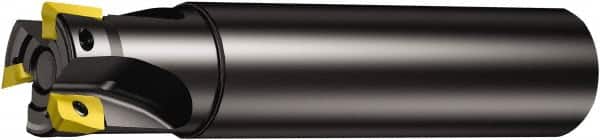

Sandvik Coromant - 32mm Cut Diam, 10mm Max Depth of Cut, 32mm Shank Diam, 9.8425" OAL, Indexable Square Shoulder End Mill - 390R-070204E-ML Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series CoroMill 390
Item #: 54946181
Brand: Sandvik Coromant
Model #: 5745511
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (Decimal Inch) | 9.8425 |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R390-032A32L-11L |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 2.5591 |
| Weldon Flat | No |
| Insert Compatibility | 390R-070204E-ML |
| Shank Length (Decimal Inch) | 7.2835 |
| Maximum RPM | 7600 |
| Toolholder Material | Steel |
