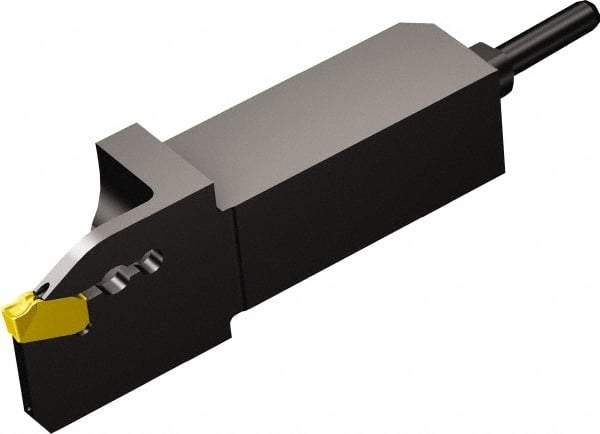

Sandvik Coromant - QSQD, External, Right Hand, 0.8" Max Depth of Cut, Indexable Grooving Tool Holder - QD-NG-0300-0002-CM Insert Compatibility, 5/8" Shank Height, 5/8" Shank Width, 2.7559" OAL, Through Coolant
Item #: 54936588
Brand: Sandvik Coromant
Model #: 6427676
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8000 |
| Overall Length (Decimal Inch) | 2.7559 |
| Toolholder Style | QSQD |
| Insert Compatibility | QD-NG-0300-0002-CM |
| Shank Height (Decimal Inch) | 0.6250 |
| Shank Height (Inch) | 5/8 |
| Shank Width/Diameter (Inch) | 5/8 |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Series | CoroCut QD |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Insert Seat Size | G |
| Maximum Workpiece Diameter (Decimal Inch) | 1.6000 |
| Mount Type | 11 |
| Manufacturers Catalog Number | 6427676 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | QD-NG-0300-0002-CM |
| Shank Diameter (Decimal Inch) | 0.6250 |
