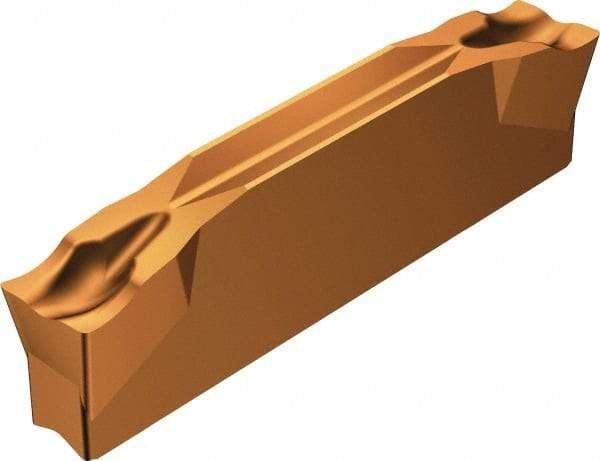

Sandvik Coromant - R123G2G CM 1145 Grade, 0.1181" Cutting Width, Carbide Cutoff Insert - 5° Right Hand Lead Angle, 0.0079" Cnr Rad, Oxide Coated
Item #: 54931985
Brand: Sandvik Coromant
Model #: 5741471
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | R123G2 |
| Insert Size | G |
| Lead Angle Direction | Right Hand |
| Lead Angle | 5 |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | 1145 |
| Coating | Oxide |
| Series | CoroCut 1-2 |
| Relief Angle | 7 |
| Chipbreaker | CM |
| Maximum Depth of Cut (mm) | 18.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.7402 |
| Full Radius | No |
| Multi-Use Application | Grooving; Parting; Profiling |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Insert Hand | Right Hand |
| Insert Holding Method | Clamp |
| Insert Seat Size | G |
| Width Tolerance | +0.004/-0 (Inch) |
| Manufacturers Catalog Number | 5741471 |
