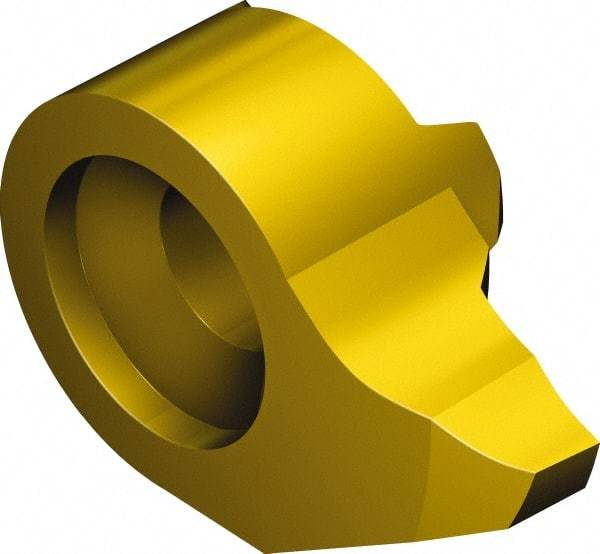

Sandvik Coromant - MB-..T09307 Grade 1025 Carbide Boring Insert - TiAlN/TiN Finish, Round, 93° Relief Angle, 0.2mm Corner Radius
Item #: 54931811
Brand: Sandvik Coromant
Model #: 6075002
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, steel, plastic and other tough-to-machine materials. Application is determined by material grade.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | MB-..T093 |
| Insert Size | 07 |
| Manufacturer's Grade | 1025 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Coating | TiAlN/TiN |
| Hole Diameter (mm) | 10.00 |
| Hole Diameter (Decimal Inch) | 0.3937 |
| Rake | Negative |
| Rake Angle | -3 |
| Relief Angle | 93 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Coating Process | PVD |
| Series | CoroCut |
| Maximum Depth of Cut (Decimal Inch) | 0.0709 |
| Insert Holding Method | Screw |
| Shape | Round |
| Manufacturers Catalog Number | 6075002 |
