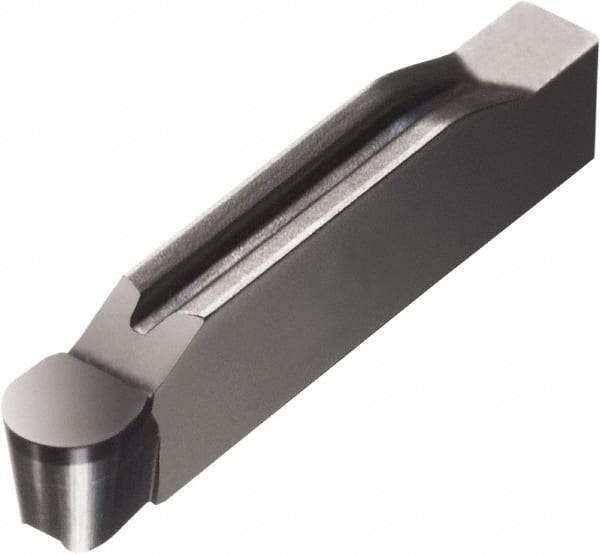

Sandvik Coromant - 0600N123 Grade CD10, 6mm Cutting Width Polycrystalline Diamond (PCD) Grooving Insert - 2.8mm Max Depth of Cut, Neutral, 3mm Corner Radius, Uncoated
Item #: 54930672
Brand: Sandvik Coromant
Model #: 5736222
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | 0600 |
| Material | Polycrystalline Diamond (PCD) |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 2.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1102 |
| Manufacturer's Grade | CD10 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Corner Radius (mm) | 3.00 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Overall Length (mm) | 25.05 |
| Overall Length (Decimal Inch) | 0.9862 |
| Series | CoroCut 1-2 |
| Manufacturers Catalog Number | 5736222 |
