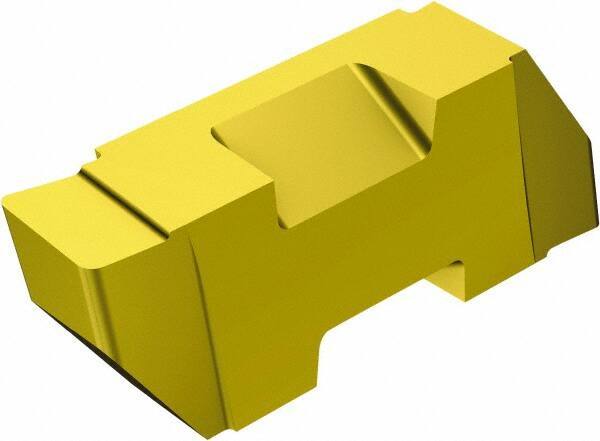

Sandvik Coromant - 3142TLGP Grade 2135, 0.142" Cutting Width Carbide Grooving Insert - 0.15" Max Depth of Cut, Left Hand, 0.32mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 54930136
Brand: Sandvik Coromant
Model #: 5753320
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TLGP |
| Insert Size | 3142 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.1420 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Manufacturer's Grade | 2135 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Relief Angle | 10 |
| Insert Seat Size | 3 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.32 |
| Corner Radius (Decimal Inch) | 0.0125 |
| Coating Process | MT-CVD |
| Series | Top Lok |
| ISO Number | TLGP3142L2135 |
| Manufacturers Catalog Number | 5753320 |
| Insert Thickness (Decimal Inch) | 0.3440 |
| Insert Thickness (mm) | 8.7376 |
