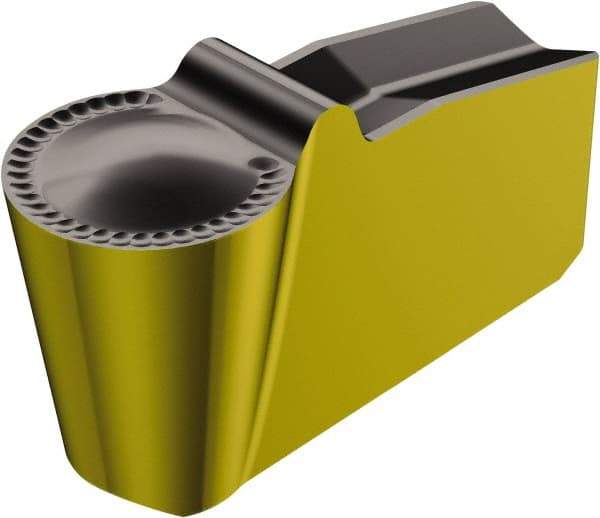

Sandvik Coromant - 60N151.2-5P Grade 4225, Carbide Grooving Insert - 3.7mm Max Depth of Cut, Neutral, 4mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 54929864
Brand: Sandvik Coromant
Model #: 5737872
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2-5P |
| Insert Size | 60 |
| Material | Carbide |
| Maximum Depth of Cut (mm) | 3.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.1457 |
| Manufacturer's Grade | 4225 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Corner Radius (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Coating Process | CVD |
| Series | T-Max Q-Cut |
| Manufacturers Catalog Number | 5737872 |
