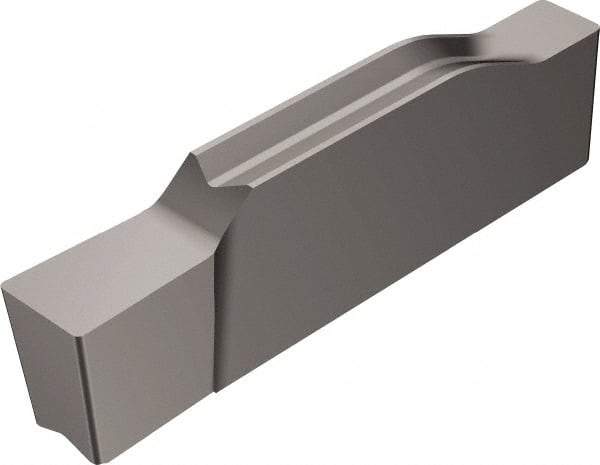

Sandvik Coromant - L1N123 S Grade 7015, 8mm Cutting Width Carbide Grooving Insert - Neutral, 0.8mm Corner Radius, Uncoated
Item #: 54927181
Brand: Sandvik Coromant
Model #: 5736392
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | L1 |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Manufacturer's Grade | 7015 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Relief Angle | 7 |
| Insert Seat Size | L |
| Chipbreaker | S |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | PVD |
| Series | CoroCut 1-2 |
| ISO Number | N123L1080008S010257015 |
| Manufacturers Catalog Number | 5736392 |
| Insert Thickness (Decimal Inch) | 0.2382 |
| Insert Thickness (mm) | 6.0500 |
