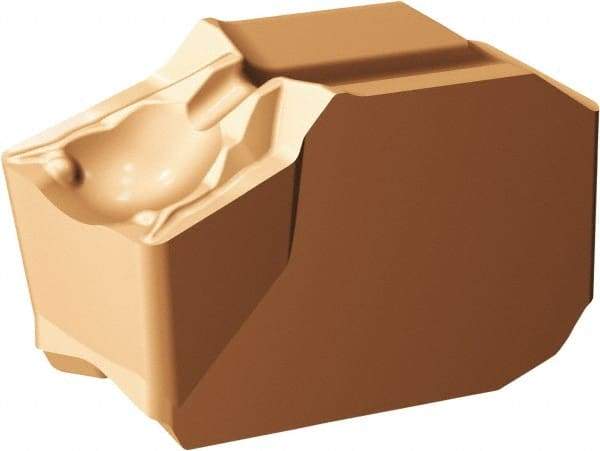

Sandvik Coromant - QDNL0800 TF Grade 1145 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, Irregular, 8mm Inscr Circle, 6.5mm Thick, 0mm Corner Radius
Item #: 54926670
Brand: Sandvik Coromant
Model #: 6427516
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QDNL |
| Insert Size | 0800 |
| Material | Carbide |
| Inscribed Circle (mm) | 8.00 |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness (Decimal Inch) | 0.2559 |
| Thickness (mm) | 6.50 |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Manufacturer's Grade | 1145 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | TF |
| Insert Length (Decimal Inch) | 0.7480 |
| Insert Length (mm) | 19 |
| ISO Number | QDNL08000008TF1145 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6427516 |
| Primary Workpiece Material | M; P; S |
| Secondary Workpiece Material | M; P; S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroCut QD |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Cutting Edge Style | Negative Land/ER Treated |
| Cutting Width (mm) | 8.00 |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Irregular |
