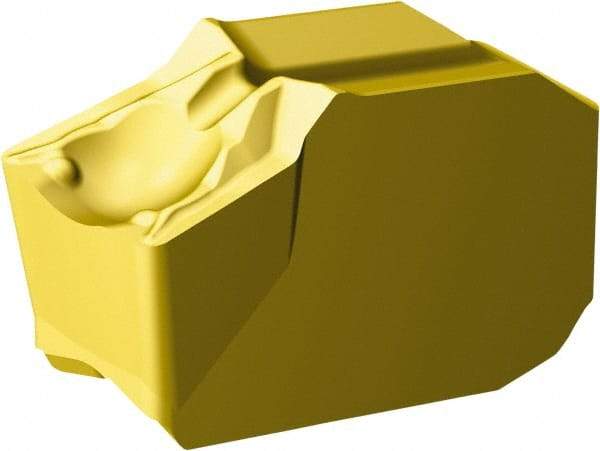

Sandvik Coromant - QDNK0600 TF Grade 1135 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, Irregular, 1/4" Inscr Circle, 5mm Thick, 0mm Corner Radius
Item #: 54926498
Brand: Sandvik Coromant
Model #: 6398221
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QDNK |
| Insert Size | 0600 |
| Material | Carbide |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.1969 |
| Thickness (mm) | 5.00 |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Manufacturer's Grade | 1135 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | TF |
| Insert Length (Decimal Inch) | 0.5512 |
| Insert Length (mm) | 14 |
| ISO Number | QDNK06000004TF1135 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | 6398221 |
| Primary Workpiece Material | K; M; P |
| Secondary Workpiece Material | K; M; P |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroCut QD |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Cutting Edge Style | Negative Land/ER Treated |
| Cutting Width (mm) | 6.00 |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Irregular |
