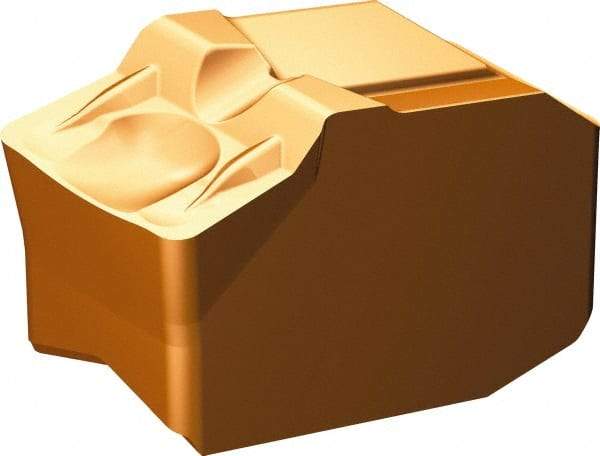

Sandvik Coromant - LQD GM Grade 1125, 8mm Cutting Width Carbide Grooving Insert - Neutral, 0.8mm Corner Radius, TiAlN Finish
Item #: 54925821
Brand: Sandvik Coromant
Model #: 6427511
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QD |
| Insert Size | L |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 0 |
| Insert Seat Size | 7.81 to 8.99 |
| Chipbreaker | GM |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.3150 |
| Coating Process | PVD |
| Series | CoroCut QD |
| ISO Number | QDNL08000008GM1125 |
| Manufacturers Catalog Number | 6427511 |
| Insert Thickness (Decimal Inch) | 0.2559 |
| Insert Thickness (mm) | 6-1/2 |
