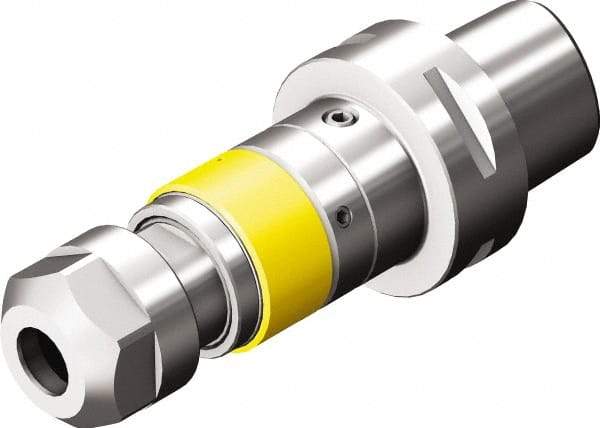

Sandvik Coromant - C4 Modular Connection Tapping Chuck/Holder - M2 to M5 Tap Capacity, 80mm Projection, Through Coolant
Item #: 54923552
Brand: Sandvik Coromant
Model #: 6412705
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single tap chucks to accept various tap shank diameters without changing machine tool holding set-ups.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Minimum Tap Capacity (mm) | M2 |
| Maximum Tap Capacity (mm) | M5 |
| Projection (Decimal Inch) | 3.1496 |
| Projection (mm) | 80.00 |
| Quick Change | No |
| Hole Diameter (mm) | 11.30 |
| Hole Diameter (Decimal Inch) | 0.4449 |
| Collet System | ER Tap |
| Collet Series | ER11 |
| Holder Series | CoroChuck 970 |
| Nose Diameter (mm) | 18.70 |
| Nose Diameter (Decimal Inch) | 0.7362 |
| Overall Length (mm) | 104.00 |
| Overall Length (Decimal Inch) | 4.0945 |
| Through Coolant | Yes |
