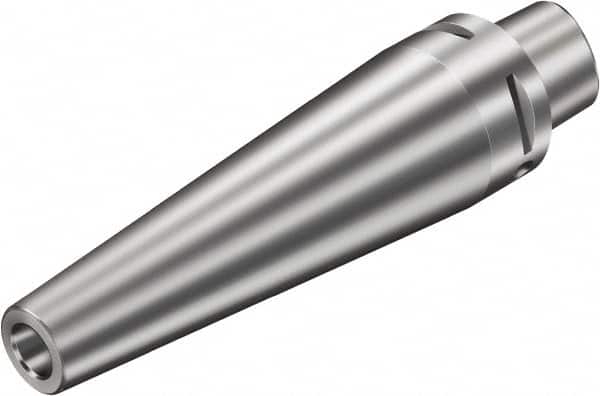

Sandvik Coromant - 12mm Hole Diam, C4 Modular Connection Shrink Fit Tool Holder & Adapter - 135mm Projection, 20mm Nose Diam, 135mm Clamping Depth, Through Coolant
Item #: 54922158
Brand: Sandvik Coromant
Model #: 6070075
Exact Tooling IR#: 04
Features and Benefits
Modular connections are used in compatible modular tool holder systems and allow for tool changes without removing the tool shank from the machine spindle.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Hole Diameter (Decimal Inch) | 0.4724 |
| Hole Diameter (mm) | 12.00 |
| Projection (mm) | 135.00 |
| Projection (Decimal Inch) | 5.3150 |
| Nose Diameter (mm) | 20.00 |
| Nose Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 135.00 |
| Clamping Depth (Decimal Inch) | 5.3150 |
| Overall Length (mm) | 159.00 |
| Overall Length (Decimal Inch) | 6.2598 |
| Balanced to (RPM) | 0 |
