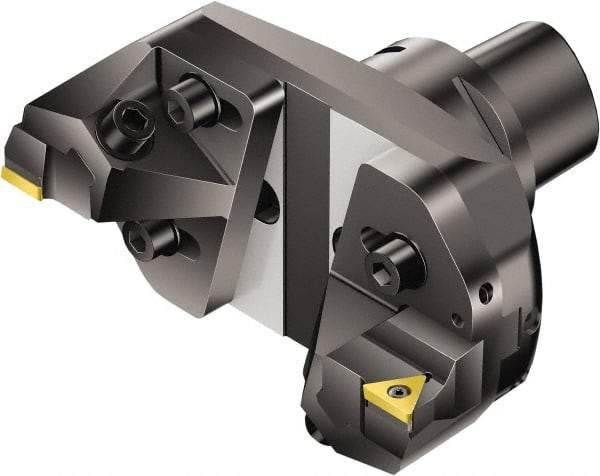

Sandvik Coromant - Right Hand Cut, 248mm Min Bore Diam, Steel Modular Boring Cutting Unit Head - 4.8032" Max Bore Depth, Through Coolant, Compatible with TCMT 432820..TC-Cx (XL)
Item #: 54913108
Brand: Sandvik Coromant
Model #: 6352117
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series Name | CoroBore 820 XL |
| Minimum Bore Diameter (mm) | 248.00 |
| Minimum Bore Diameter (Decimal Inch) | 9.7638 |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (mm) | 122.00 |
| Maximum Bore Depth (Decimal Inch) | 4.8032 |
| Insert Style | TCMT 432820..TC-Cx (XL) |
| Head Length/Projection (mm) | 122.00 |
| Head Length/Projection (Decimal Inch) | 4.8032 |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Connection Size | C8 |
| Maximum Bore Diameter (mm) | 300.00 |
| Maximum Bore Diameter (Decimal Inch) | 11.8110 |
| Head Diameter Excluding Insert (mm) | 80.00 |
| Head Diameter Excluding Insert (Decimal Inch) | 3.1496 |
| Complete Insert Compatibility | TCMT 22 04 08 |
| Series | CoroBore XL |
| Modular Connection Size | C8 |
| Includes | Adaptor; Cartridge; Key; Slide |
