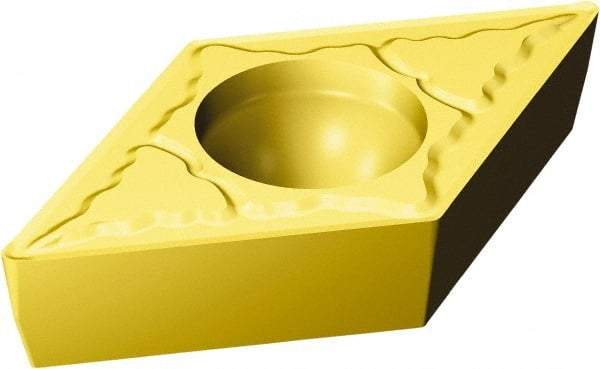

Sandvik Coromant - DPMT21.52 MM Grade 2025 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 55° Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/32" Corner Radius
Item #: 54911417
Brand: Sandvik Coromant
Model #: 5732446
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DPMT |
| Insert Size | 21.52 |
| Material | Carbide |
| Length (mm) | 7.75 |
| Length (Decimal Inch) | 0.3051 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | 2025 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | MM |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | DPMT070208MM2025 |
| Relief Angle | 11 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5732446 |
| Primary Workpiece Material | M |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 111 |
| Maximum Depth of Cut (mm) | 6.95 |
| Maximum Depth of Cut (Decimal Inch) | 0.2736 |
| Insert Holding Method | Screw |
| Shape | Diamond |
