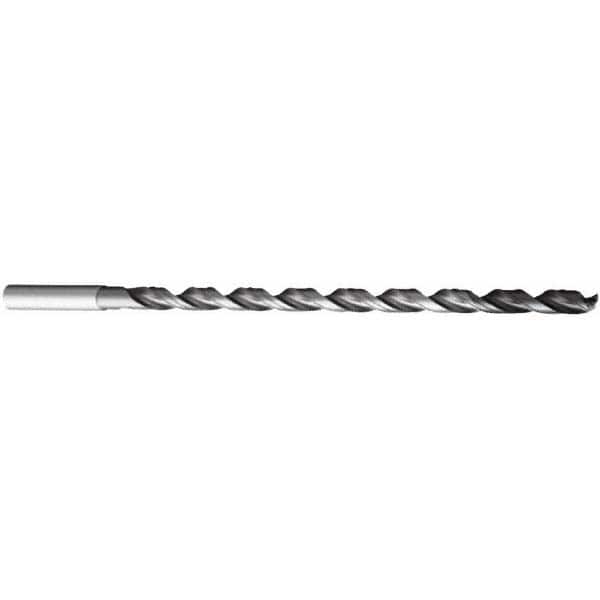

Extra Length Drill Bit: 0.4724″ Dia, 140 °, Solid Carbide TiAlN Finish, 8.5039″ Flute Length, 10.5512″ OAL, Spiral Flute, Straight-Cylindrical Shank, Series CoroDrill 861
Item #: 54910211
Brand: Sandvik Coromant
Model #: 6151141
Product Specifications
| Drill Bit Size (mm) | 12.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | CoroDrill 861 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | m7 mm |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.4724 |
| Drill Point Length (mm) | 2.00 |
| Drill Point Length (Decimal Inch) | 0.0787 |
| Overall Length (Decimal Inch) | 10.5512 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Flute Length (Decimal Inch) | 8.5039 |
| Flute By Diameter Ratio | 15xD |
| Maximum Drilling Depth (Decimal Inch) | 7.0866 |
| Specification Designation | ISO; ANSI |
