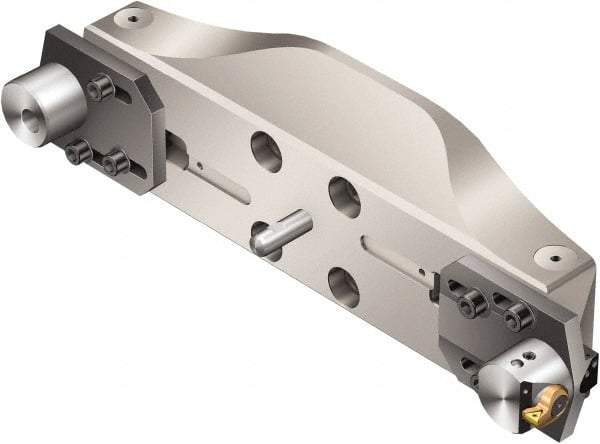

Sandvik Coromant - Right Hand Cut, 378mm Min Bore Diam, Modular Boring Cutting Unit Head - 4.685" Max Bore Depth, Through Coolant, Compatible with TCMT 221825..TC (XL)
Item #: 54908579
Brand: Sandvik Coromant
Model #: 6352248
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series Name | CoroBore 825 XL |
| Minimum Bore Diameter (mm) | 378.00 |
| Minimum Bore Diameter (Decimal Inch) | 14.8819 |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (mm) | 119.00 |
| Maximum Bore Depth (Decimal Inch) | 4.6850 |
| Insert Style | TCMT 221825..TC (XL) |
| Head Length/Projection (mm) | 119.00 |
| Head Length/Projection (Decimal Inch) | 4.6850 |
| Through Coolant | Through Coolant |
| Connection Size | 40X |
| Maximum Bore Diameter (mm) | 475.00 |
| Maximum Bore Diameter (Decimal Inch) | 18.7008 |
| Head Diameter Excluding Insert (mm) | 40.00 |
| Head Diameter Excluding Insert (Decimal Inch) | 1.5748 |
| Neck Diameter (mm) | 375.00 |
| Neck Diameter (Decimal Inch) | 14.7638 |
| Complete Insert Compatibility | TCMT 11 03 04 |
| Series | CoroBore XL |
| Includes | Bridge; Cartridge; Counterweight; Fine boring head; Key; Slide; Slide Extension; Stop plate set |
