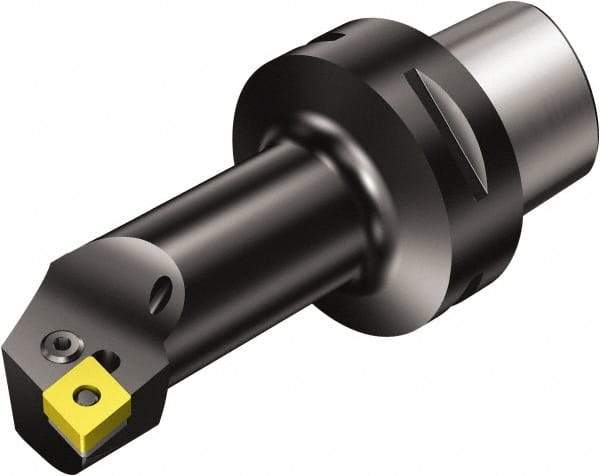

Sandvik Coromant - Right Hand, C5 CNMG 432 Modular Turning and Profiling Cutting Unit Head - Lever Holding Method, 1.9685 Inch Hole Diameter, Through Coolant
Item #: 54906094
Brand: Sandvik Coromant
Model #: 6188383
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 140.00 |
| Head Length/Projection (Decimal Inch) | 5.5118 |
| Insert Style | CNMG 432 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Center to Cutting Height (mm) | 115.00 |
| Center to Cutting Height (Decimal Inch) | 4.5276 |
| Complete Insert Compatibility | CNMG 12 04 08 |
