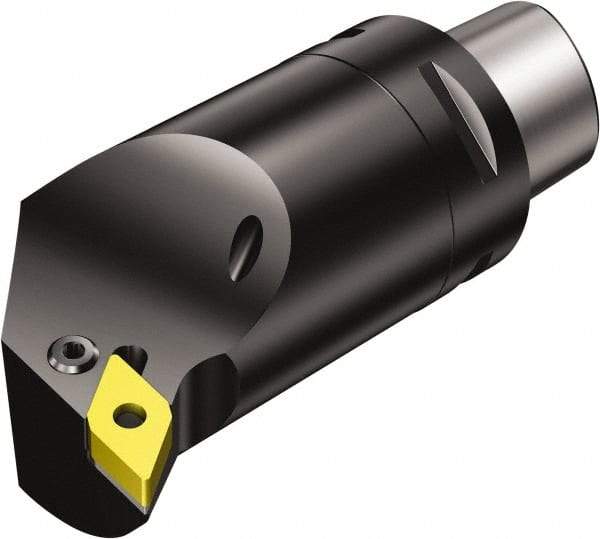

Sandvik Coromant - Right Hand, C4 DNMG 332 Modular Turning and Profiling Cutting Unit Head - Lever Holding Method, 1.5748 Inch Hole Diameter, Through Coolant
Item #: 54905963
Brand: Sandvik Coromant
Model #: 6188367
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 110.00 |
| Head Length/Projection (Decimal Inch) | 4.3307 |
| Insert Style | DNMG 332 |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 40.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.5748 |
| Center to Cutting Height (mm) | 87.00 |
| Center to Cutting Height (Decimal Inch) | 3.4252 |
| Complete Insert Compatibility | DNMG 11 04 08 |
