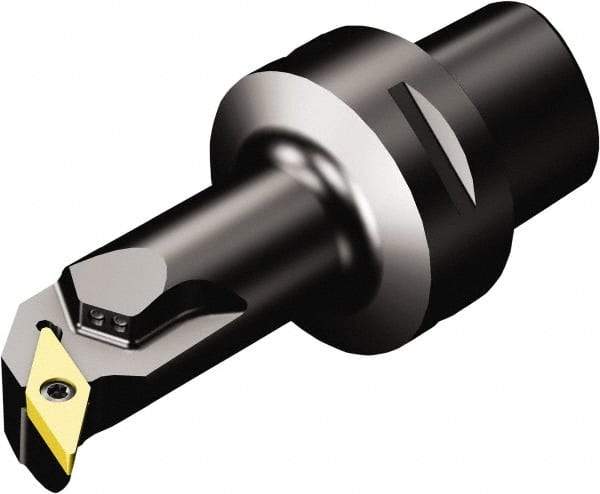

Sandvik Coromant - Left Hand Cut, Size C4, VBMT 332 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 18mm Ctr to Cutting Edge, 90mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 54904735
Brand: Sandvik Coromant
Model #: 6404600
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 90.00 |
| Head Length/Projection (Decimal Inch) | 3.5433 |
| Insert Style | VBMT 332 |
| Center to Cutting Edge (mm) | 18.00 |
| Center to Cutting Edge (Decimal Inch) | 0.7087 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 33.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.2992 |
| Center to Cutting Height (mm) | 68.00 |
| Center to Cutting Height (Decimal Inch) | 2.6772 |
| Complete Insert Compatibility | VBMT 16 04 08 |
