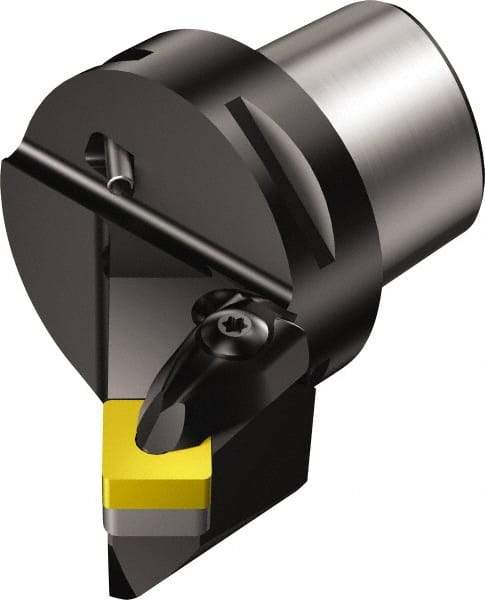

Sandvik Coromant - Left Hand Cut, Size C8, SNMG 856 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 55mm Ctr to Cutting Edge, 85.99mm Head Length, Through Coolant, Series T-Max P
Item #: 54904586
Brand: Sandvik Coromant
Model #: 5729422
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C8 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 85.99 |
| Head Length/Projection (Decimal Inch) | 3.3854 |
| Insert Style | SNMG 856 |
| Center to Cutting Edge (mm) | 55.00 |
| Center to Cutting Edge (Decimal Inch) | 2.1654 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 150.00 |
| Minimum Hole Diameter (Decimal Inch) | 5.9055 |
| Center to Cutting Height (mm) | 39.01 |
| Center to Cutting Height (Decimal Inch) | 1.5358 |
| Complete Insert Compatibility | SNMG 25 07 24 |
