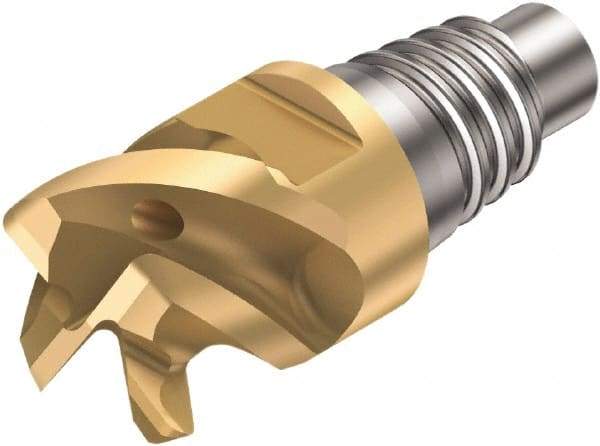

Sandvik Coromant - A316-SM Grade 1030 Carbide End Milling Tip Insert - TiAlN Finish, 4 Flutes, 20mm Cutting Diam, 11.5mm Depth of Cut, 18.5mm Extension, 1/8" Cnr Rad, 50° Helix
Item #: 54897632
Brand: Sandvik Coromant
Model #: 6223993
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | CoroMill 316 |
| Milling Tip Style | A316-SM |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Manufacturer's Grade | 1030 |
| Depth of Cut (mm) | 11.50 |
| Depth of Cut (Decimal Inch) | 0.4528 |
| Number of Flutes | 4 |
| Coating | TiAlN |
| Milling Tip Full Description | Corner Radius End Mill |
| Corner Radius (Decimal Inch) | 0.1250 |
| Coating Process | PVD |
| Extension From Holder (mm) | 18.50 |
| Extension From Holder (Decimal Inch) | 0.7283 |
| Helix Angle | 50 |
| Style | A316-SM-P |
| Manufacturers Catalog Number | 6223993 |
