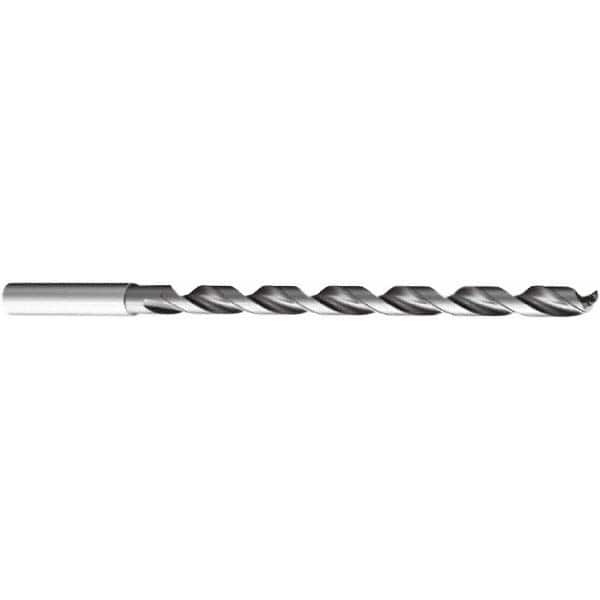

Extra Length Drill Bit: 0.4016″ Dia, 140 °, Solid Carbide TiAlN Finish, 6.9291″ Flute Length, 8.9764″ OAL, Spiral Flute, Straight-Cylindrical Shank, Series CoroDrill 861
Item #: 54893888
Brand: Sandvik Coromant
Model #: 6151114
Product Specifications
| Drill Bit Size (mm) | 10.20 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | CoroDrill 861 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | m7 mm |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.4016 |
| Drill Point Length (Decimal Inch) | 0.0670 |
| Overall Length (Decimal Inch) | 8.9764 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.00 |
| Shank Length (Decimal Inch) | 1.7717 |
| Flute Length (Decimal Inch) | 6.9291 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 4.8032 |
| Specification Designation | ISO; ANSI |
