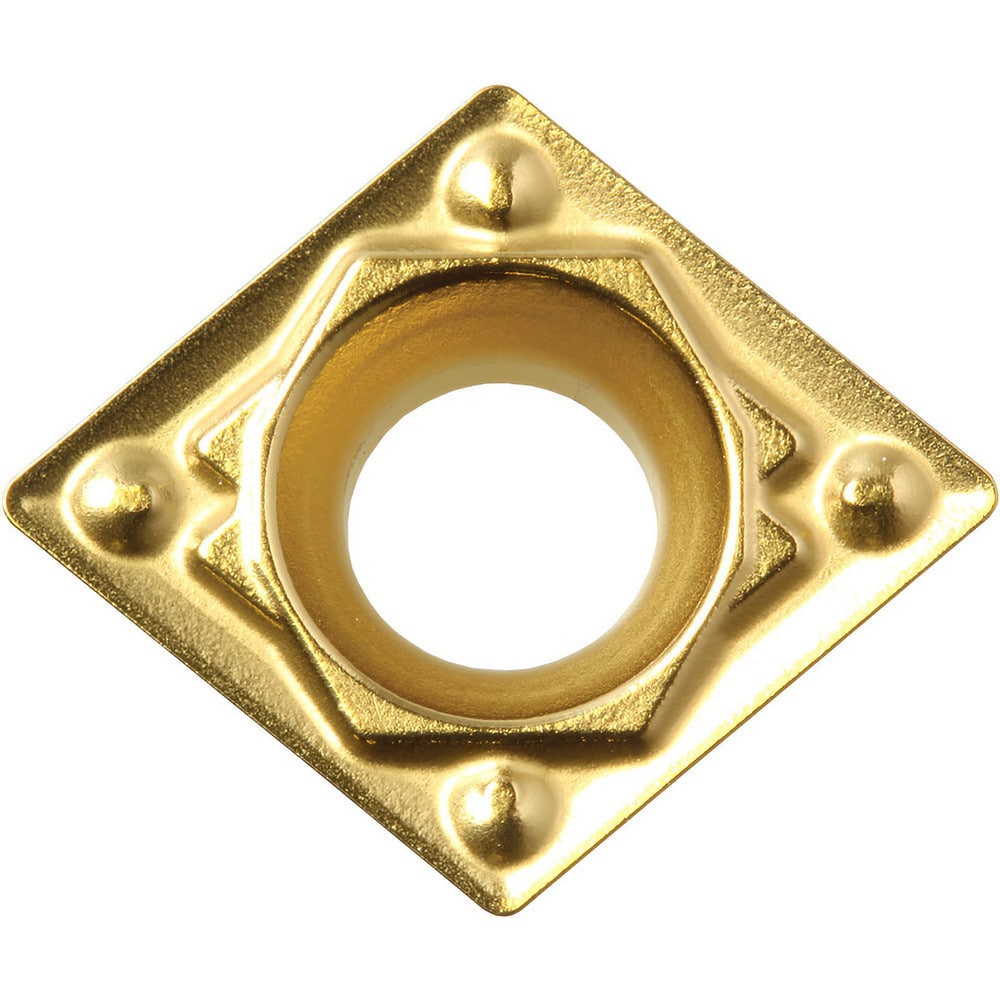

Turning Insert: CPMH25151HQ PV710, Cermet
Item #: 18249243
Brand: Kyocera
Model #: TLF02210
Product Specifications
| ANSI Insert Code | CPMH25151 |
| ISO Insert Code | CPMH080204 |
| Relief Angle | 11 |
| Insert Style | CPMH |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 80 |
| Manufacturer Grade | PV710 |
| Coating/Finish | TiCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.3125 |
| Inscribed Circle (Inch) | 5/16 |
| Insert Material | Cermet |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Medium Machining; Finishing |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1378 |
| Maximum Depth of Cut (Decimal Inch) | 0.1042 |
| Insert Holding Method | Screw |
| Width (Inch) | 5/16 |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3125 |
| Insert Length (Inch) | 5/16 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | CPMH080204HQ |
| Manufacturers Catalog Number | TLF02210 |
| Material Grade | P01; P10; P20 |
| Coating Classification | PVD |
| Chip Breaker | HQ |
| Rake Angle | 15 |
| Cutting Edge Style | Honed |
| Industry Standard Number | CPMH25151HQPV710 |
| Width (Decimal Inch - 4 Decimals) | 0.3125 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Internal Facing; Boring |
| ANSI Size Code | 25151 |
| ISO Size Code | 080204 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 25151 |
| ANSI Insert Code | CPMH25151 |
| ISO Insert Code | CPMH080204 |
| Relief Angle | 11 |
| Insert Style | CPMH |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Included Angle | 80 |
| Manufacturer Grade | PV710 |
| Coating/Finish | TiCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.3125 |
| Inscribed Circle (Inch) | 5/16 |
| Insert Material | Cermet |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Medium Machining; Finishing |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1378 |
| Maximum Depth of Cut (Decimal Inch) | 0.1042 |
| Insert Holding Method | Screw |
| Width (Inch) | 5/16 |
| Clearance Code | P |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3125 |
| Insert Length (Inch) | 5/16 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | CPMH080204HQ |
| Manufacturers Catalog Number | TLF02210 |
| Material Grade | P01; P10; P20 |
| Coating Classification | PVD |
| Chip Breaker | HQ |
| Rake Angle | 15 |
| Cutting Edge Style | Honed |
| Industry Standard Number | CPMH25151HQPV710 |
| Width (Decimal Inch - 4 Decimals) | 0.3125 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Internal Facing; Boring |
| ANSI Size Code | 25151 |
| ISO Size Code | 080204 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 25151 |
| MSC Part # | 18249243 |
| Mfr Part # | TLF02210 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
