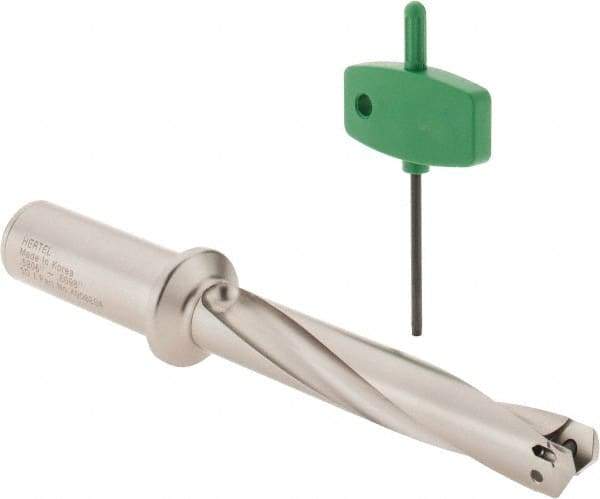

Hertel - 21.5 to 21.99mm Diam, 5xD, 107.5mm Max Depth, 1" Shank Diam, 127.3mm Flute, Replaceable Tip Drill - HMD-MAT Toolholder, Series HMD
Item #: 54810841
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | HMD |
| Minimum Drill Diameter (mm) | 21.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.8465 |
| Maximum Drill Diameter (mm) | 21.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.8660 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 4.2323 |
| Maximum Drill Depth (mm) | 107.50 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1 |
| Toolholder Style | HMD-MAT |
| Through Coolant | Through Coolant |
| Shank Type | Straight |
| Flute Length (mm) | 127.30 |
| Flute Length (Decimal Inch) | 5.0156 |
| Body Length (Decimal Inch) | 7.5938 |
| Toolholder Material | Steel |
| Shank Length (mm) | 55.60 |
| Shank Length (Decimal Inch) | 2.1890 |
