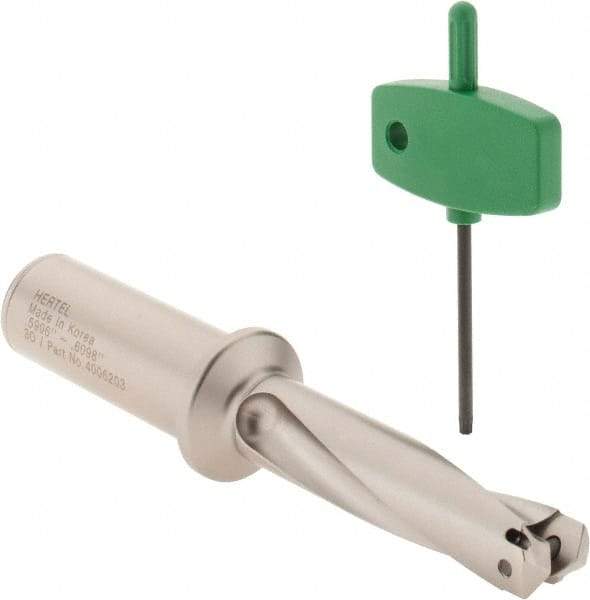

Hertel - 15.5 to 15.99mm Diam, 3xD, 46.5mm Max Depth, 3/4" Shank Diam, 64.6mm Flute, Replaceable Tip Drill - HMD-MAH Toolholder, Series HMD
Item #: 54810338
Brand: Hertel
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | HMD |
| Minimum Drill Diameter (mm) | 15.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.6102 |
| Maximum Drill Diameter (mm) | 15.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6300 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.8307 |
| Maximum Drill Depth (mm) | 46.50 |
| Shank Diameter (Inch) | 0.75 |
| Shank Diameter (Decimal Inch) | 0.75 |
| Toolholder Style | HMD-MAH |
| Through Coolant | Through Coolant |
| Shank Type | Straight |
| Flute Length (mm) | 64.60 |
| Flute Length (Decimal Inch) | 2.5469 |
| Body Length (Decimal Inch) | 4.9063 |
| Toolholder Material | Steel |
| Shank Length (mm) | 50.80 |
| Shank Length (Decimal Inch) | 2.0000 |
