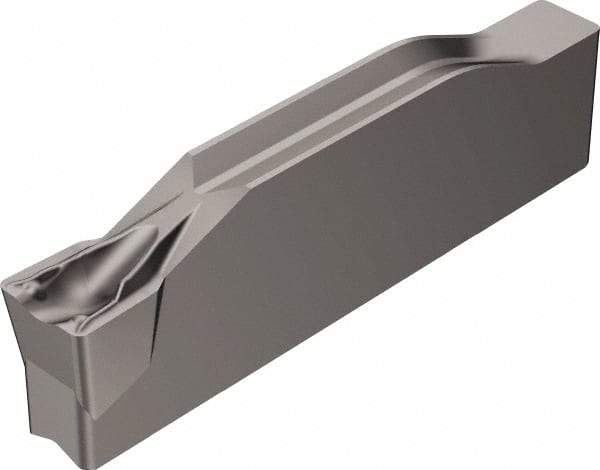

Sandvik Coromant - K1N123x1 TF Grade H13A, 6mm Cutting Width Carbide Grooving Insert - 3.4mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, Uncoated
Item #: 54747811
Brand: Sandvik Coromant
Model #: 5736677
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123x1 |
| Insert Size | K1 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 3.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.1339 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.35 |
| Cutting Height (Decimal Inch) | 0.1713 |
| Insert Seat Size | K |
| Chipbreaker | TF |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning; Grooving |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | Uncoated |
| Series | CoroCut 1-2 |
| Rake | Positive |
| ISO Number | N123K1-0600-0004-TF H13A |
| Manufacturers Catalog Number | N123K1-0600-0004-TF H13A |
| Overall Width (mm) | 4.35 |
| Overall Width (Decimal Inch) | 0.1713 |
| Insert Thickness (Decimal Inch) | 0.1713 |
